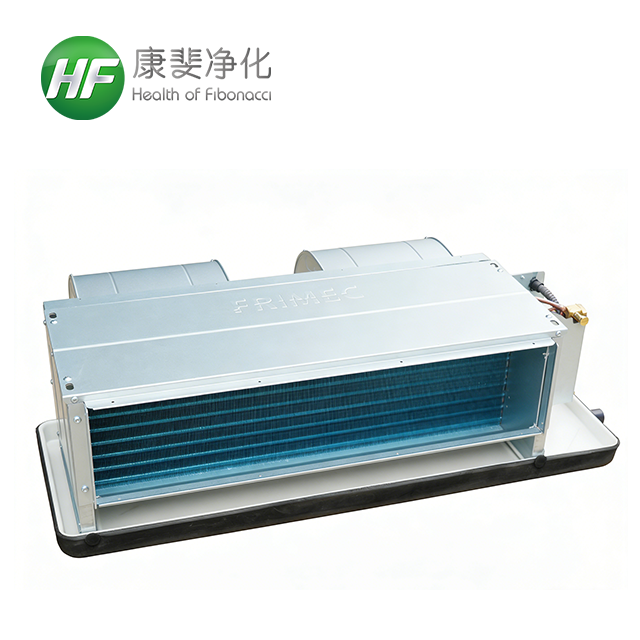

Luxury Horizontal Concealed Ducted Fan Coil Unit 2 Pipe 4 Pipe Hydronic Water Cooling Heating FCU HVAC System
220 VAC / 72w / 535m³/h(18893.35ft³/h)
$74.00
Sale price
$74.00
Regular price
Skip to product information
Luxury Horizontal Concealed Ducted Fan Coil Unit 2 Pipe 4 Pipe Hydronic Water Cooling Heating FCU HVAC System
$74.00
Sale price
$74.00
Regular price
| Type | Fan Coil Unit |
| Refrigerant | Water |
| Mounting Type | Ceiling Mount |
| Fan Motors Type | AC |
| Motor Type | AC Motor |
| Filter Type | Magnetic Filter, Regular Filter, Activated Carbon Filter |
| Application | Hospital, Plant, Office, School, Hotel, Apartment, Home, Warehouse, Mall |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor |
| Place of Origin | Shandong, China |
| Weight (kg) | 20 |
| Brand Name | HF |
| Model Number | HF-FP-WA-68-1(Gz) |
| Dimension (l*w*h) | 960*470*230 |
| Cooling Capacity | 3145W |
| Fan Type | Forward-curved Multi-blade Centrifugal Double-inlet Fan |
| Noise | 44dB(A) |
| Heating Capacity | 5268W |
| Application Area | 20m² |
| Fan Quantity | 2 |

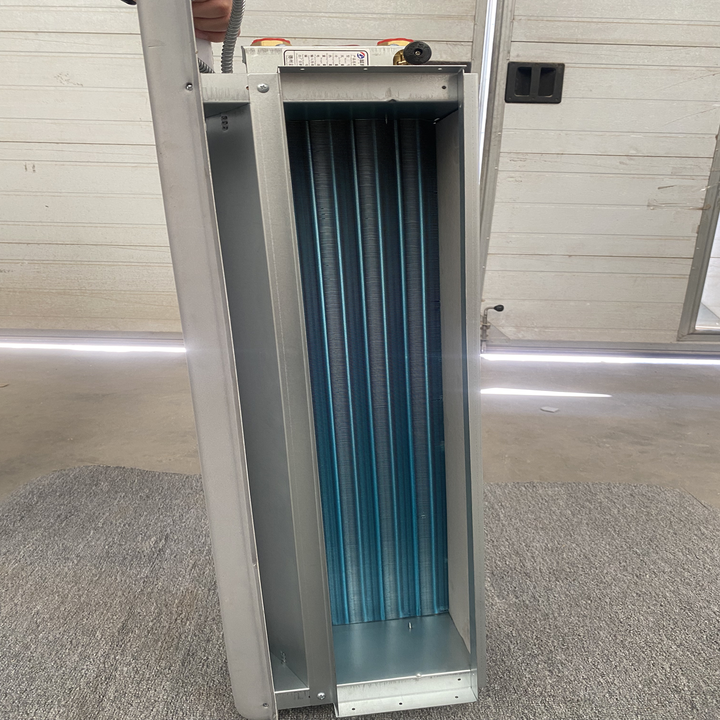

| Heat Exchanger | Copper tube with louvered aluminum fin, mechanical expansion joint |
| Inlet & Outlet Pipe Diameter | Rc3/4 - Tapered female thread |
| Cold Water Flow | 11kg/min |
| Water Pressure Drop | 22kpa |
